Bronze handed fairlead for boats
    
  • Bronze handed fairlead for boats
  • Bronze handed fairlead for boats

Bronze handed fairlead

1112/BR/100BAB
€53.05

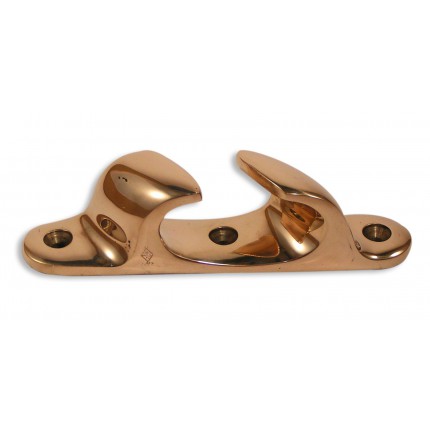

This solid bronze angled fairlead is designed to guide mooring lines at a lateral angle. Its two offset cheeks direct the line outboard, reducing chafing against the deck edges.

Unlike a straight fairlead, this model is available in port-hand or starboard-hand versions. The correct orientation depends on the lead of the mooring line towards the cleat or mooring bitt. Its open groove allows the line to be inserted from above, while the elongated base has three fixing holes.

Available in six lengths, from 100 to 300 mm, it is suitable for the deck hardware of classic boats. Choose the size according to the mooring line diameter, lead angle and mounting position.

Bronze handed fairlead for boats

Bronze handed

€53.05
Side :
Size :
Quantity :
Ask a Question



Download PDF

Specifications

  • Angled fairlead in solid bronze
  • British-made deck hardware
  • For classic or traditional boats
  • Fixing screws not included
solid bronze angled fairlead technical drawing and dimensions
Reference Length (A) Width (B) Height (C) Opening (D) Spacing (E) Hole centres Fixing diameter
1112/BR/100 100 mm 23 mm 25 mm 13 mm 35 mm 77 mm 4.5 mm
1112/BR/125 125 mm 24 mm 29 mm 16 mm 50 mm 104 mm 5 mm
1112/BR/150 150 mm 30 mm 35 mm 22 mm 57 mm 125 mm 5 mm
1112/BR/200 200 mm 38 mm 43 mm 32 mm 75 mm 170 mm 6 mm
1112/BR/250 250 mm 48 mm 57 mm 42 mm 100 mm 202 mm 8 mm
1112/BR/300 300 mm 56 mm 71 mm 49 mm 118 mm 8 mm

Frequently asked questions

  • 1. Which screws should I order to secure this fairlead?

    • To secure this fairlead, you can use either bronze wood screws or bronze machine screws with matching nuts and washers.

      For outdoor and marine installations, we recommend bronze fixings or, where appropriate, marine-grade stainless steel fixings. The type of fixing should be selected according to the mounting surface and expected loads.

  • 2. Is this angled fairlead available in other finishes?

    • This solid bronze angled fairlead can be supplied with a chrome-plated finish upon request, with a lead time of approximately 4 to 6 weeks.

  • 3. Can this fairlead be made to measure?
    • This angled bronze fairlead cannot be made to measure.

Good to know

This angled fairlead is handcrafted using century-old moulds, which may result in slight variations in the bronze. These characteristics give each piece its own distinctive character and authenticity.

Solid bronze offers excellent resistance to weathering and marine conditions, helping preserve the quality and integrity of the material over time.

1112/BR/100BAB

Data sheet

Composition
Bronze
Manufacture
England
