Bronze anchor windlass for 10 mm chain

Reference 1268/LA/002
€4,731.82

By buying this product you can collect up to 473 points. Your cart will total 473 points that can be converted into a voucher of €236.50.

Tax included

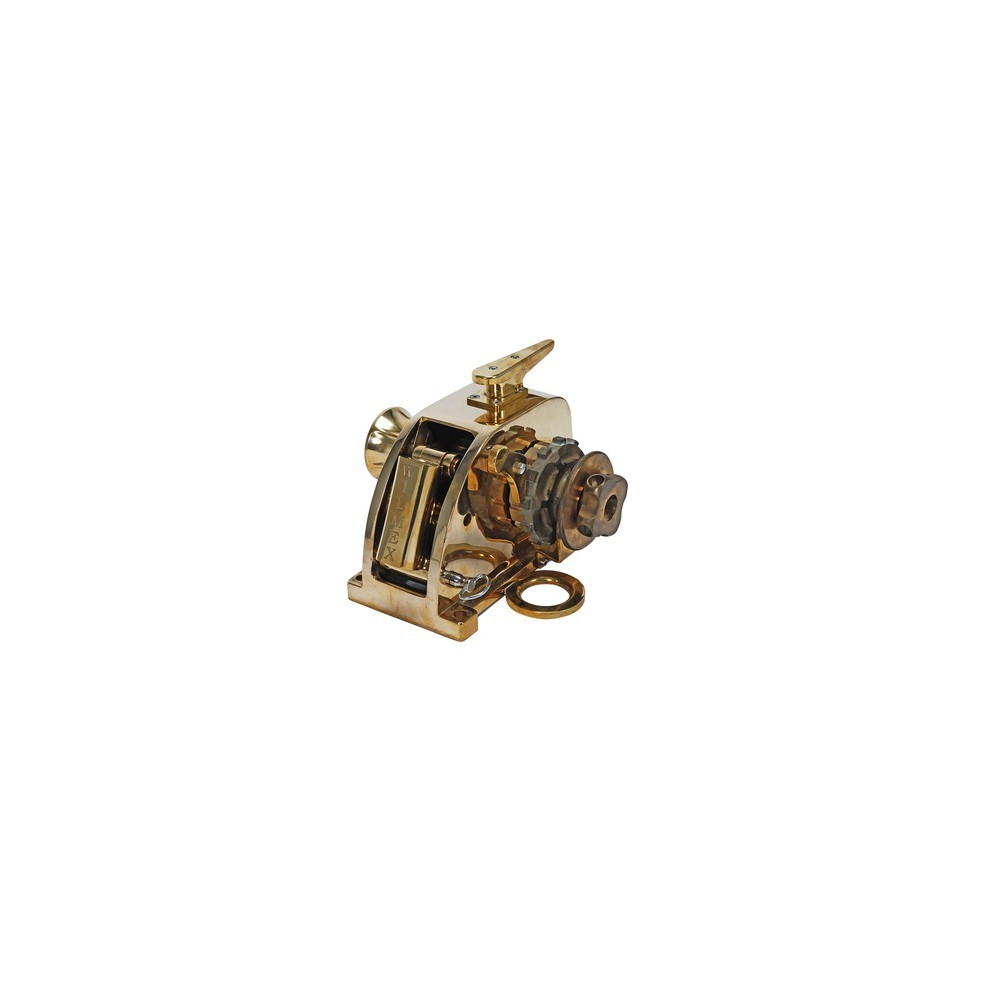

Heavy and robust two gear anchor winch made from high-strength seawater resistant cast brass for yachts and ships of up to a length of 20 m.

On the port side of the winch a strong capstan head (diameter 115 mm) is fitted, which can be used for all kinds of traction work.

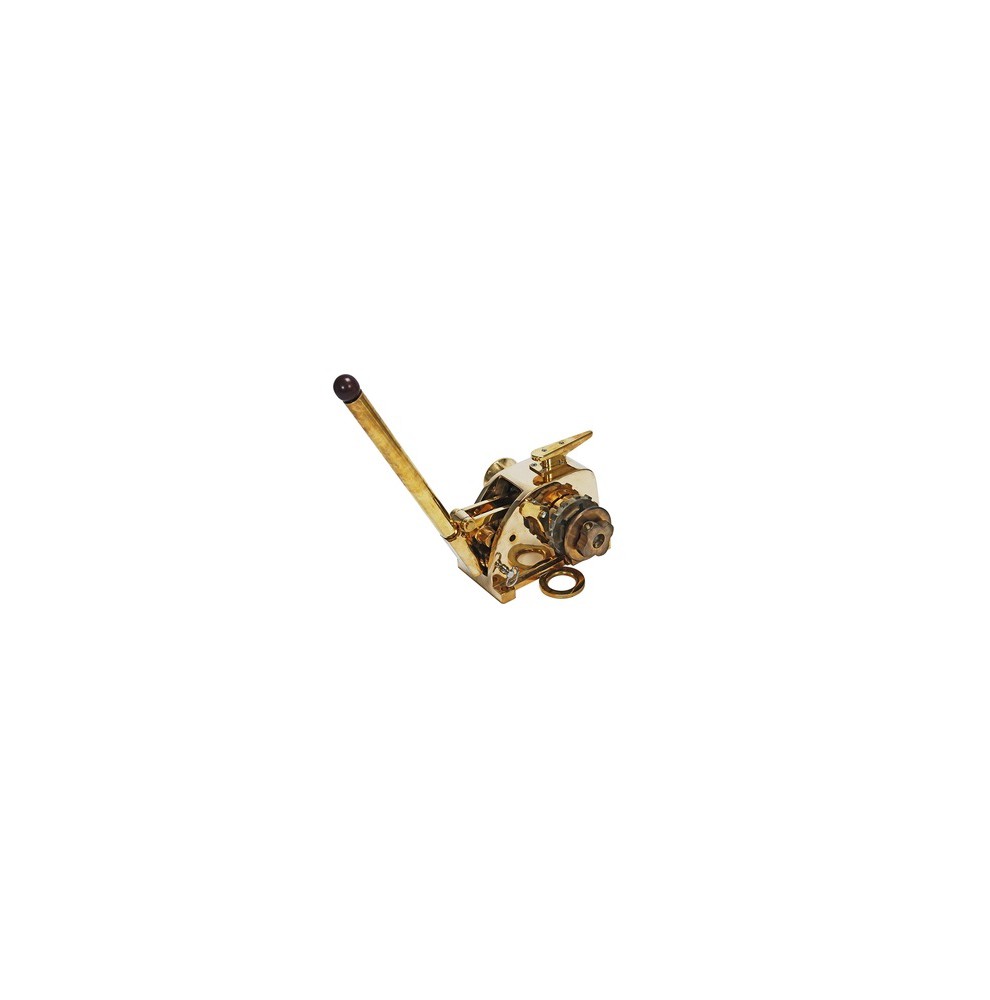

The solid telescopic handle, made from bronze tubing (diameter 40 mm, total length 0,80 m) also activates the brake nut.

This gear drive and all axles are made from stainless steel. In speed gear the hoisting speed is 9 m/min (6,5 double travel per metre).



Quantity

1268/LA/002

Data sheet

Diameter
10 mm (chain)
Height
265 mm
Width
350 mm
Dimensions
Manufacture
Germany
