Bronze cross bollard

1137/BR/118

€368.06

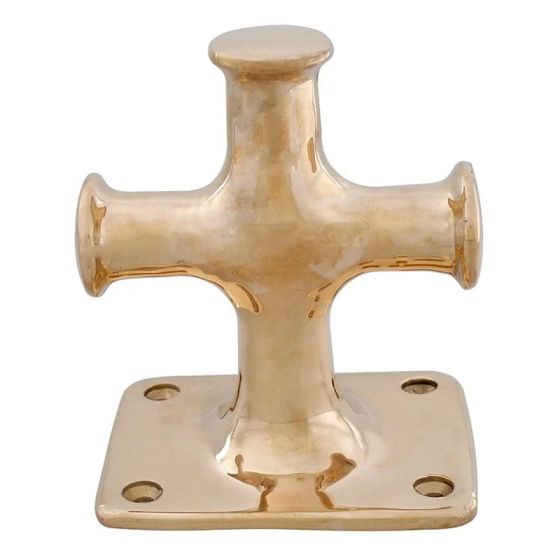

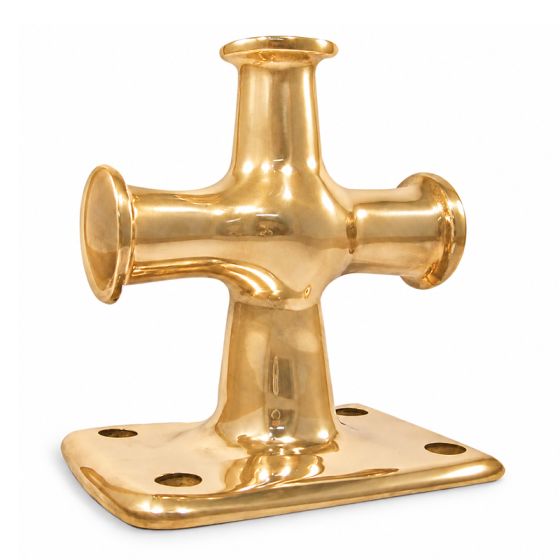

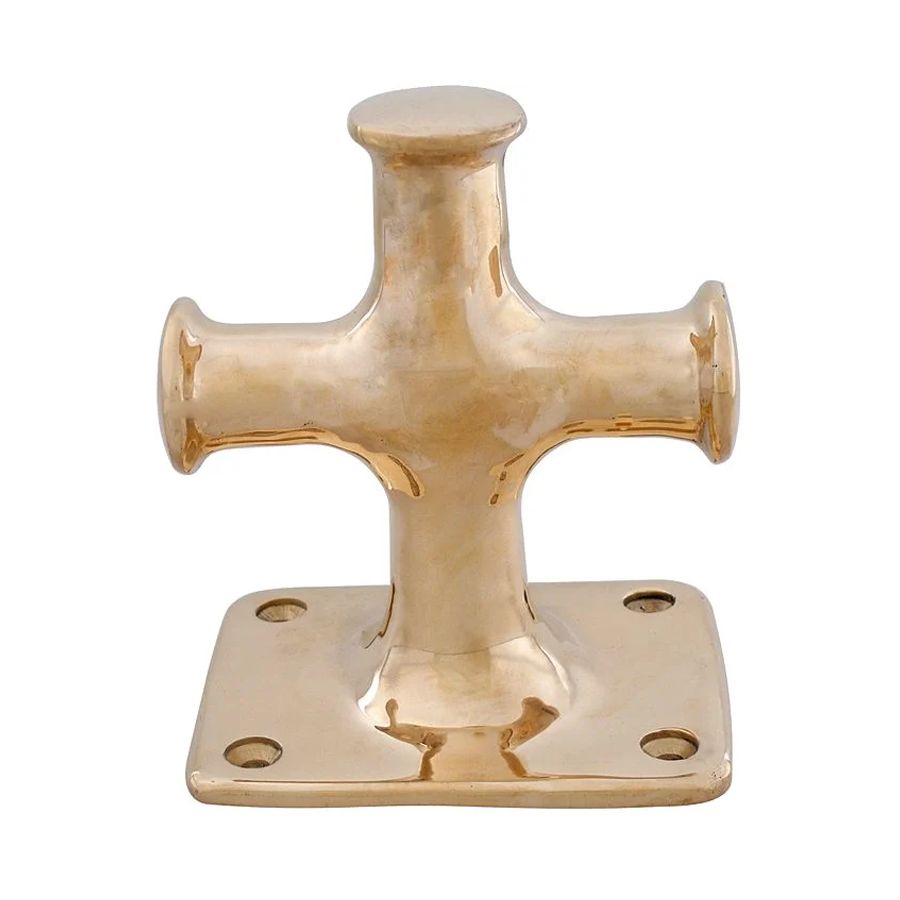

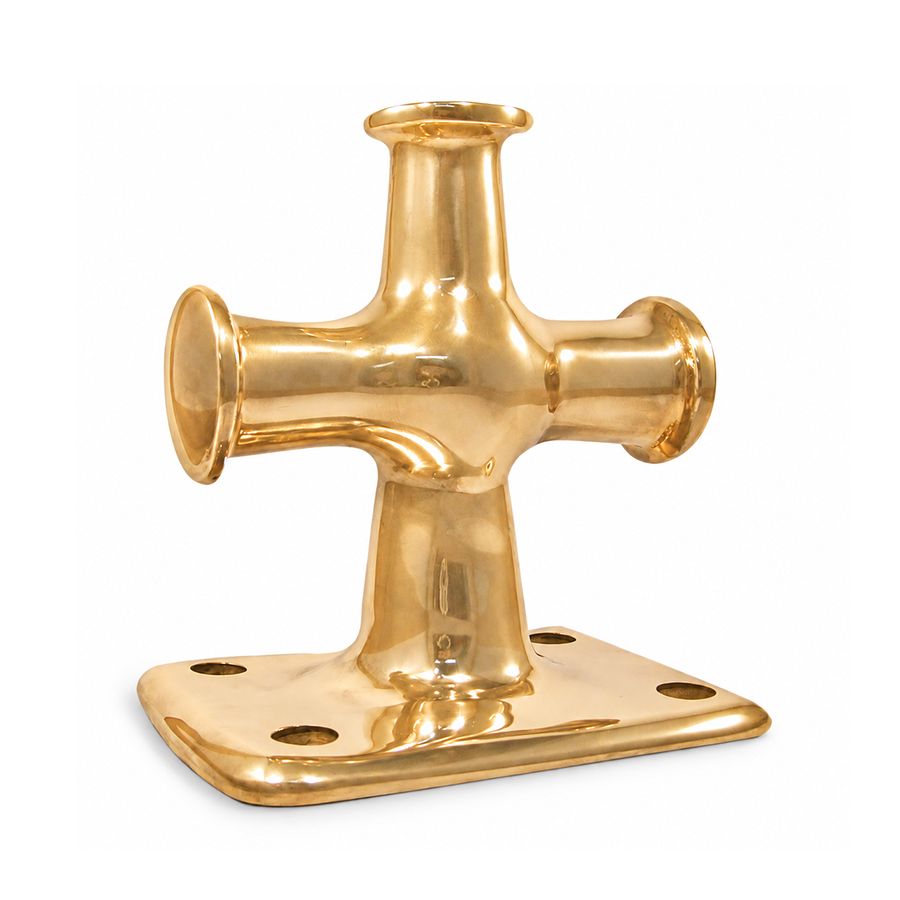

This solid bronze cross-shaped mooring bollard features a central post topped with a circular head and two horizontal arms extending from its middle. This arrangement provides several points for belaying a mooring line and allows a mooring eye to be slipped over the upper head, depending on the direction of the line.

The crossarms have projecting ends that help retain and arrange turns of rope. The rectangular base has four fixing holes and must be secured to a reinforced area of the deck, using fixings suited to the expected loads.

Available in two sizes, this cross-shaped bollard is suitable for replacing a fitting of the same design on an older boat, provided the dimensions and mounting position match.

Bronze cross

€368.06

Size :

Quantity :

Download PDF

Description
Product Details

Specifications

Cross-shaped mooring bollard in solid bronze
British-made deck hardware
For classic or traditional boats
Fixing screws not included

solid bronze cross-shaped mooring bollard technical drawing

References	Arm length (A)	Height (B)	Base plate dimensions (cxD)	Hole centres (E)	Screw diameter
1137/BR/118	117 mm	125 mm	125 x 95 mm		6 mm
1137/BR/187	190 mm	210 mm	178 x 140 mm		10 mm

Frequently asked questions

1. Which screws should I order to secure this bollard?
- To secure this bollard, you can use either bronze wood screws or bronze machine screws with matching nuts and washers.

  For outdoor and marine applications, we recommend using bronze fixings or, where appropriate, stainless steel fixings.
2. Is this cross-shaped bollard available in other finishes?
- This solid bronze cross-shaped bollard can be supplied with a chrome-plated finish upon request, with a lead time of approximately 4 to 6 weeks.
3. Can this bollard be made to measure?
- This cross-shaped bollard cannot be made to measure.

Good to know

This cross-shaped bollard is handcrafted using century-old moulds, a traditional manufacturing process that may result in slight variations in the bronze. These characteristics give each piece its own unique character and authenticity.

Solid bronze offers excellent resistance to weathering and marine conditions, preserving the quality and integrity of the material over time.

Reference 1137/BR/118

Data sheet
