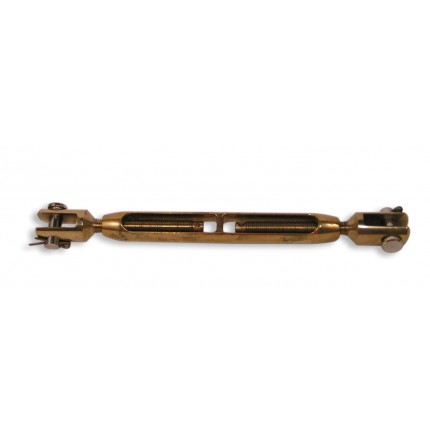

Open-body turnbuckle in bronze
Reference
1387/BR/06
€133.13
By buying this product you can collect up to 13 points. Your cart will total 13 points that can be converted into a voucher of €6.50.
Tax included
Turnbuckel open-body in bronze.
A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.
Technical features :
|
Bronze |
Wire |
Length open/closed |
Shackle Diameter | Approx Break Strain |
|
1387/BR/06 |
3/4mm |
228/149mm |
6.2mm |
1447 kg |
|
1387/BR/08 |
4/5mm |
258/172mm |
7.9mm |
2343kg |
|
1387/BR/10 |
5/6mm |
280/188mm |
9.4mm |
3597kg |
|
1387/BR/12 |
7/8mm |
355/247mm |
12.7mm |
6599kg |
|
1387/BR/16 |
8/10mm |
414/287mm |
15.6mm |
10631kg |
|
1387/BR/19 |
12mm |
548/361mm |
18.5mm |
14467kg |
1387/BR/06
Turnbuckel open-body in bronze.
A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.
