Small brass fairlead for stern
    
  • Small brass fairlead for stern
  • Small brass fairlead for stern

Small brass fairlead for stern

133/LA/105
€20.85

This polished brass bow fairlead guides a rope or anchor chain at the bow of a small boat. Its shaped base and two raised guides direct the line towards the stem while limiting sideways movement during manoeuvres.

Its compact size suits traditional small craft where a larger deck fairlead would be unsuitable. Rounded surfaces help reduce chafing. The opening must suit the rope diameter or chain size, and installation must take the lead angle into account.

Secured with two screws, it is ideal for the bow fittings of a wooden dinghy, guiding a light mooring line or anchor rode without cluttering the foredeck.

Small brass fairlead for stern

Small brass

€20.85
Quantity :
Ask a Question



Download PDF

Specifications

  • Polished brass bow fairlead
  • Italian-made deck hardware
  • For classic or traditional boats
  • Fixing screws not included

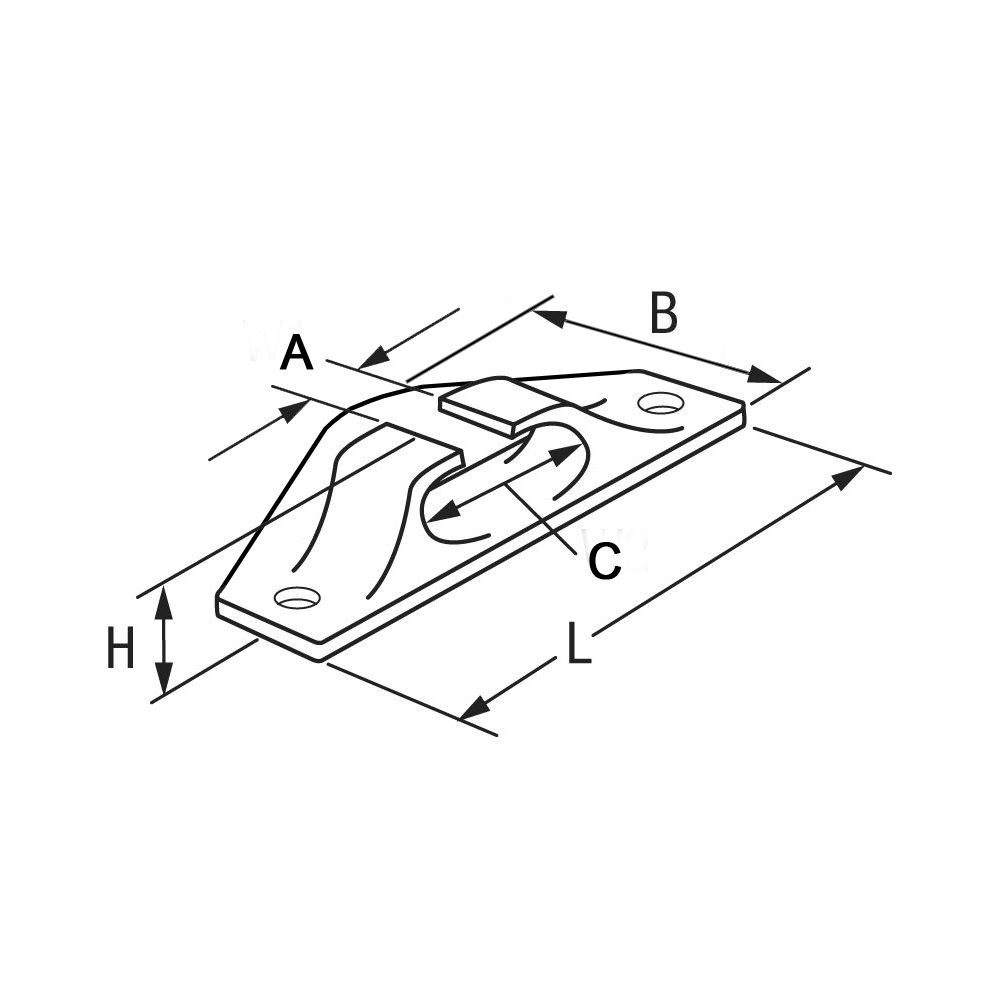

bow fairlead technical drawing and dimensions
Reference Opening (A) Base dimensions (BxL) Passage (C) Height Hole centres Screw diameter
133/LA/105 10 mm 106 x 62 mm 41 mm 26 mm 77 mm 5 mm

Frequently asked questions

  • 1. Which screws should I order to secure this fairlead?

    • To secure this bow fairlead, you can use either brass wood screws or brass machine screws with matching nuts and washers.

      For outdoor and marine installations, we recommend brass fixings or, where appropriate, marine-grade stainless steel fixings. The type of fixing should be selected according to the mounting surface and expected loads.

  • 2. Is this bow fairlead available in other finishes?

    • This brass bow fairlead is also available with a chrome-plated finish.

  • 3. Is this fairlead available in other sizes?
    • This fairlead is not available in other sizes and cannot be made to measure.

Good to know

This bow fairlead is carefully handcrafted, which may result in slight variations in the brass. These characteristics give each piece its own unique character and authenticity.

Solid brass offers excellent durability and resistance to marine conditions. However, brass naturally changes in appearance over time. As this fairlead is made from unlacquered polished brass, its original bright finish will gradually develop a patina.

Exposure to air and moisture causes the brass to oxidise naturally, creating variations in colour and tone. Regular polishing will restore its original shine. Discover our range of cleaning and maintenance products.

133/LA/105

Data sheet

Composition
Brass
Dimensions
105 x 65 x 27 mm
Manufacture
Italy
