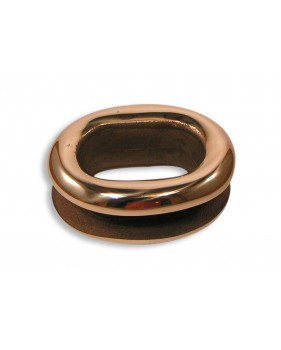

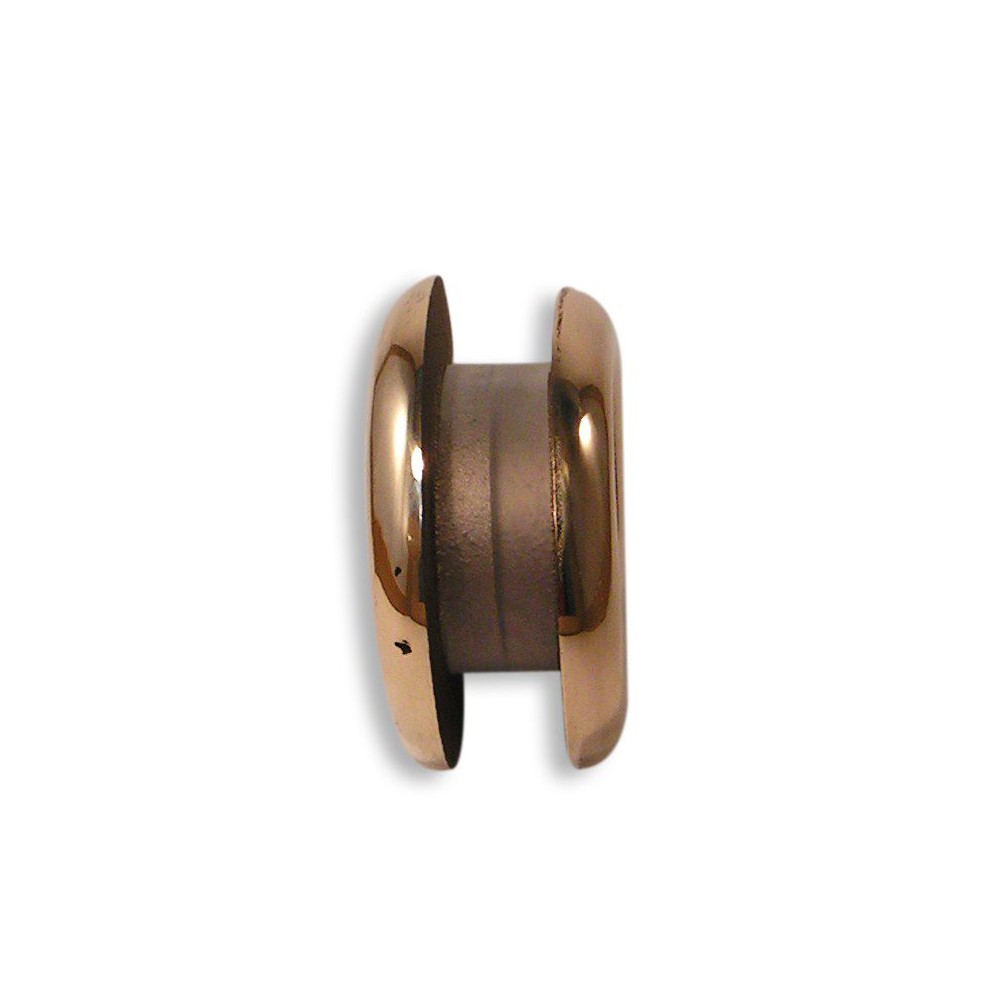

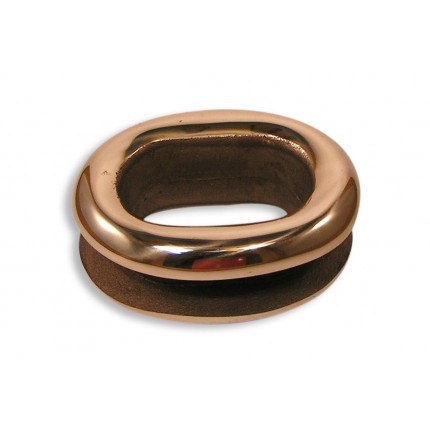

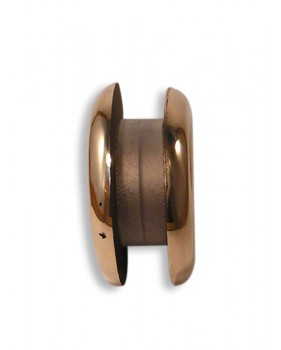

Through bulkhead fairlead in bronze

2639/BR/1

€140.95

This solid bronze bulwark hawsehole provides a passage for an anchor tripping line or chain through a boat's bulwark. Its through-sleeve protects the edges of the cut-out and provides a passage suited to the vessel's layout.

The oval opening with rounded edges helps prevent rope or chain links from rubbing directly against the timber, reducing chafing. Installation requires a cut-out sized to the sleeve, allowing for the bulwark's thickness and the direction of the line.

Available in two sizes, this piece of traditional deck hardware is suited to fitting out and restoring classic yachts and traditional boats. The appropriate model depends on the clearance required for the anchoring line.

Through

€140.95

Size :

Quantity :

Download PDF

Description
Product Details

Specifications

Bulwark hawsehole in solid bronze
British-made deck hardware
For classic or traditional boats
Fixing screws not included

dimensions of solid bronze bulwark hawsehole

Reference	Length (A)	Height (B)	Internal dimensions (CxD)	Thickness (E)
2639/BR/1	100 mm	85 mm	60 x 45 mm	10 mm
2639/BR/12	140 mm	105 mm	85 x 48 mm	16 mm

Frequently asked questions

1. How should this bulwark hawsehole be installed?
- This bronze bulwark hawsehole is not pre-drilled. The fixing holes must therefore be drilled during installation.

  Two methods are possible: drilling through the fitting and securing it with staggered bronze wood screws, or using threaded bronze machine screws fitted from one side into tapped holes in the opposite half.

  The fixing method must be suitable for the thickness and construction of the bulwark.
2. Is this bulwark hawsehole available in other finishes?
- This bulwark hawsehole is not available in other finishes.
3. Can this bulwark hawsehole be made to measure?
- This bulwark hawsehole cannot be made to measure.

Good to know

This bulwark hawsehole is handcrafted using century-old moulds, which may result in slight variations in the bronze. These characteristics give each piece its own distinctive character and authenticity.

Solid bronze offers excellent resistance to weathering and marine conditions, helping preserve the quality and integrity of the material over time.

Reference 2639/BR/1
