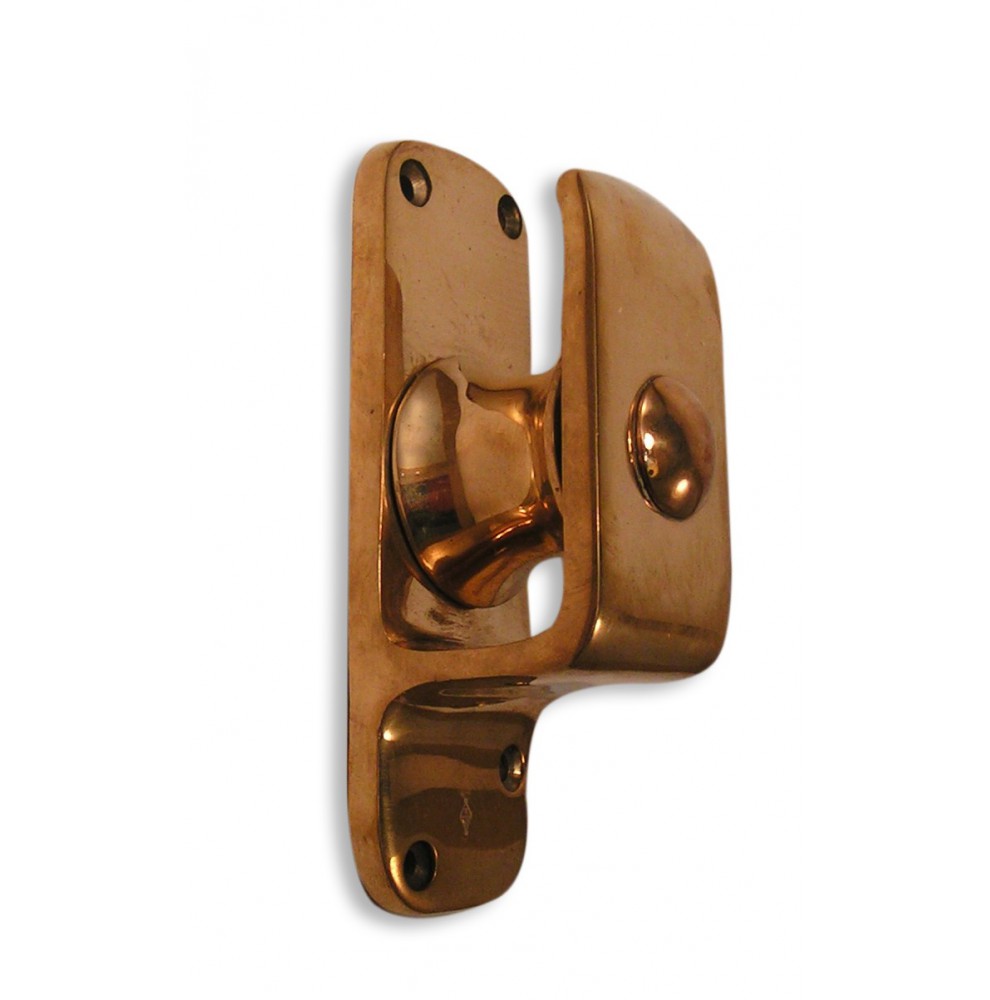

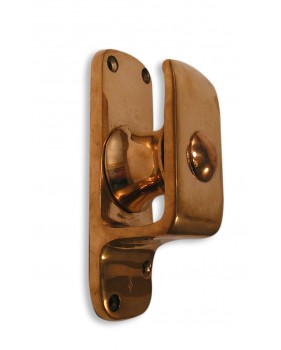

This solid bronze side-mounted anchor roller guides the anchor chain at the bow during lowering and retrieval. Unlike a roller fitted on top of the deck, its mounting plate allows installation on the side of the bow, where the chain runs off-centre.
Its rotating sheave, set between two cheek plates, guides the links and reduces rubbing against the hull. The curved outer cheek helps keep the chain in place.
The fitting must be secured to a strong support and aligned with the windlass. Designed for 8 or 10 mm chains, it is part of the anchoring hardware used on classic sailing yachts and traditional boats.
| Reference | Length (A) | Diameter (B) | Height (C) | Bolt |
|---|---|---|---|---|
| 1110/BR/08 | 155 mm | 44 mm | 35 mm | 10.5 x 115 mm |
| 1110/BR/10 | 185 mm | 50 mm | 45 mm | 12.5 x 180 mm |
Depending on the mounting surface, you can use bronze wood screws or bronze machine screws with matching nuts and washers for through-bolted installation. The diameter and strength of the fixings must be suitable for the fitting and expected loads.
Please note: on wooden boats, moisture and salt water can promote electrochemical reactions involving metal fittings and timber, potentially causing deterioration of the wood around the fixings.
We recommend using compatible marine-grade fixings, avoiding combinations of dissimilar metals wherever possible, and ensuring the installation is properly sealed.
This side-mounted anchor roller is not available in other finishes.
This side-mounted anchor roller is handcrafted using century-old moulds, which may result in slight variations in the bronze. These characteristics give each piece its own distinctive character.
Solid bronze offers excellent resistance to weathering and marine conditions, helping preserve the quality and integrity of the material over time.
