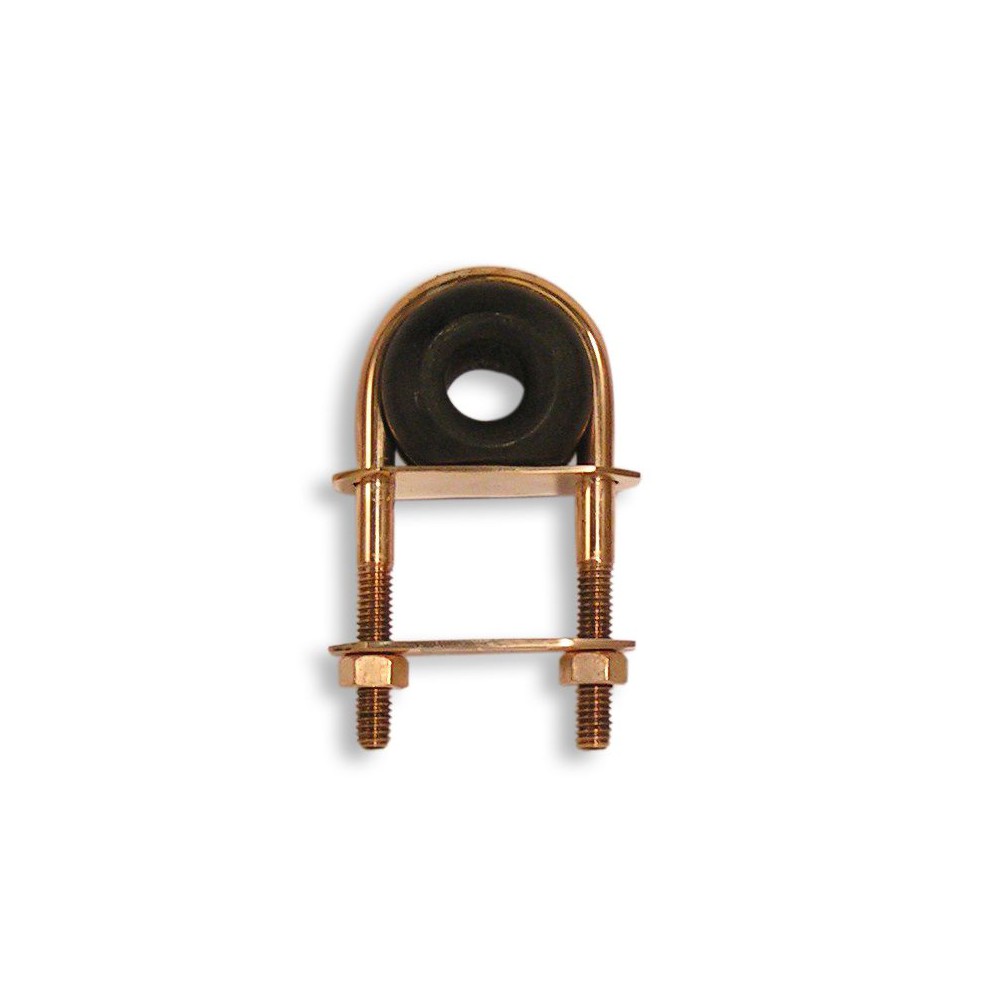

This bronze and lignum vitae sheet fairlead combines a bronze frame with a hardwood ring to guide a sheet or control line. Unlike all-metal fairleads, the rope bears against the lignum vitae, a dense wood traditionally used in marine fittings exposed to friction.
The fitting is secured by two through-mounted threaded studs, tightened from behind the mounting surface. Installation requires suitable drilling, rear access and alignment with the line to avoid excessive chafing.
Available for 10 or 12 mm rope, depending on the version, it is particularly suited to restoring deck hardware on classic sailing yachts where a lignum vitae ring fairlead is required.
| Reference | Base dimensions (AxB) | Internal diameter (C) | Threaded stud (D) | Hole centres | Thread diameter (E) |
|---|---|---|---|---|---|
| 9402/LA/BS/10 | 56 x 26 mm | 12 mm | M5 x 56 mm | 37 mm | 6 mm |
| 9402/LA/BS/12 | 61 x 28 mm | 15 mm | M6 x 56 mm | 45 mm | 7 mm |
No additional fixing screws are required: the threaded studs are integrated into the fairlead. Installation requires access beneath the mounting surface to secure the fitting.
This sheet fairlead combines solid bronze with lignum vitae, a dense hardwood traditionally used in marine applications.
This sheet fairlead is handcrafted using century-old moulds, which may result in slight variations in the bronze. Solid bronze offers excellent resistance to marine conditions.
The lignum vitae ring, made from a dense hardwood traditionally used in marine fittings, provides the contact surface for the rope and helps reduce wear caused by friction.
